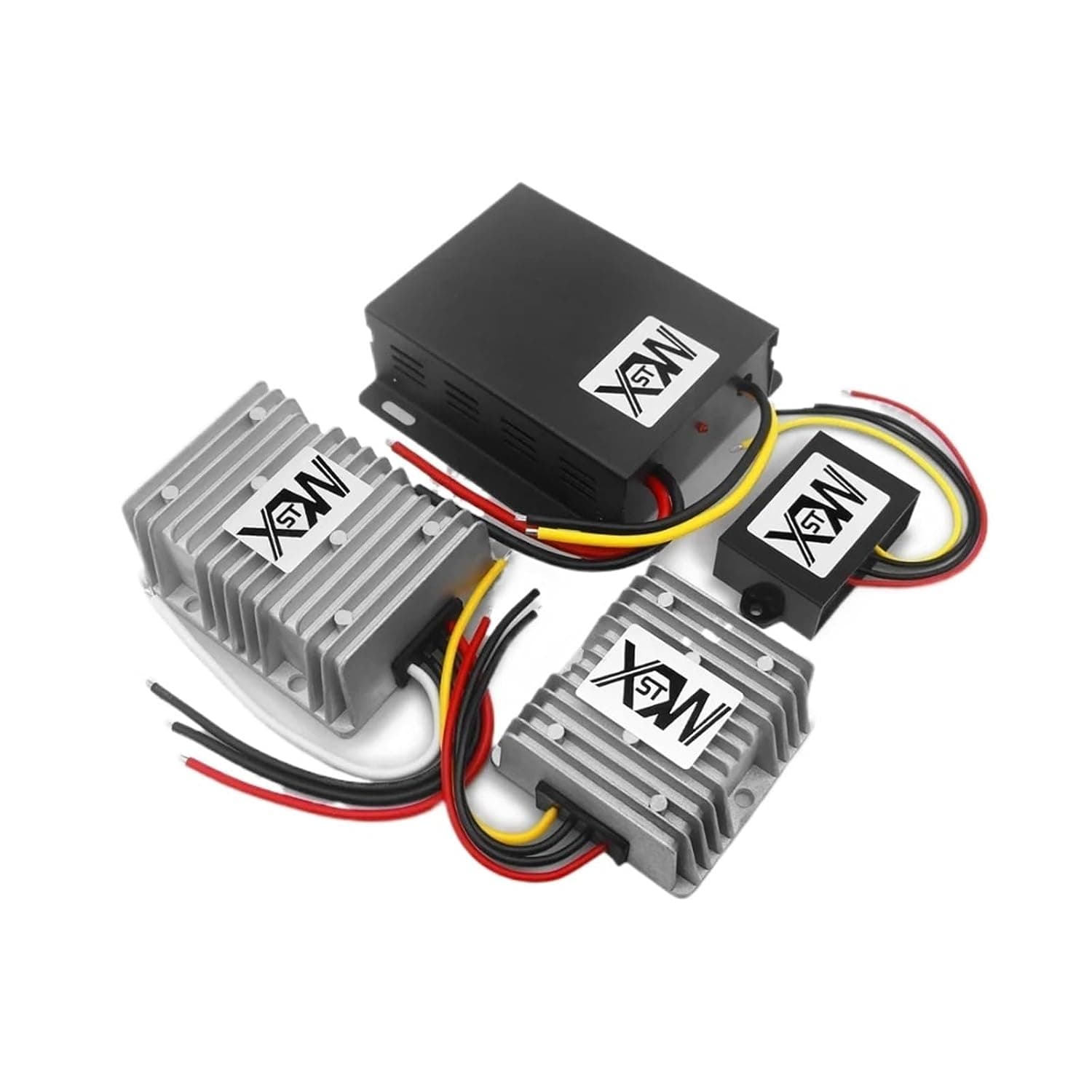

Non Isolated 12v to 27v to Step Up Boost Power Converter 27volts Stabilizer 1A to 20A Output 27V Voltage Regulator(5A Aluminum)

Voltage Regulators Power Converters 12v to 27v to step up boost power converter 27vdc stabilizer 1A to 20A output 27V Voltage Regulator Model No. XW-12-27-27W~540W Module Properties Non-isolated Module InputVoltage 12V InputVoltage Range 9-26V Output Voltage 27V Output Current 1A / 2A /3A / 5A / 8A /10A /12A /15A / 20A Output Power 27W / 54W / 81W/ 135W / 216W/ 270W/ 324W /405W/ 540W Conversion Efficiency >93% Ripple (Full load test) 40mV No-loadCurrent (1-3A) 3.5mA; (3-12A)25mA; (15-20A)40mA Working Temperature -40~80 Waterproof Rating IP67( Iron shell is not waterfroof) Size /Packing 1-3A ABS Plastic 58*40.5*22mm 95g Anti-static Bag 3-12A Aluminum 74*74*32mm 260g Anti-static Bag 15A/20A Iron 118*87*40mm 370g Bubble Bag 15A/20A Aluminum 100*80*39mm 550g White Box
