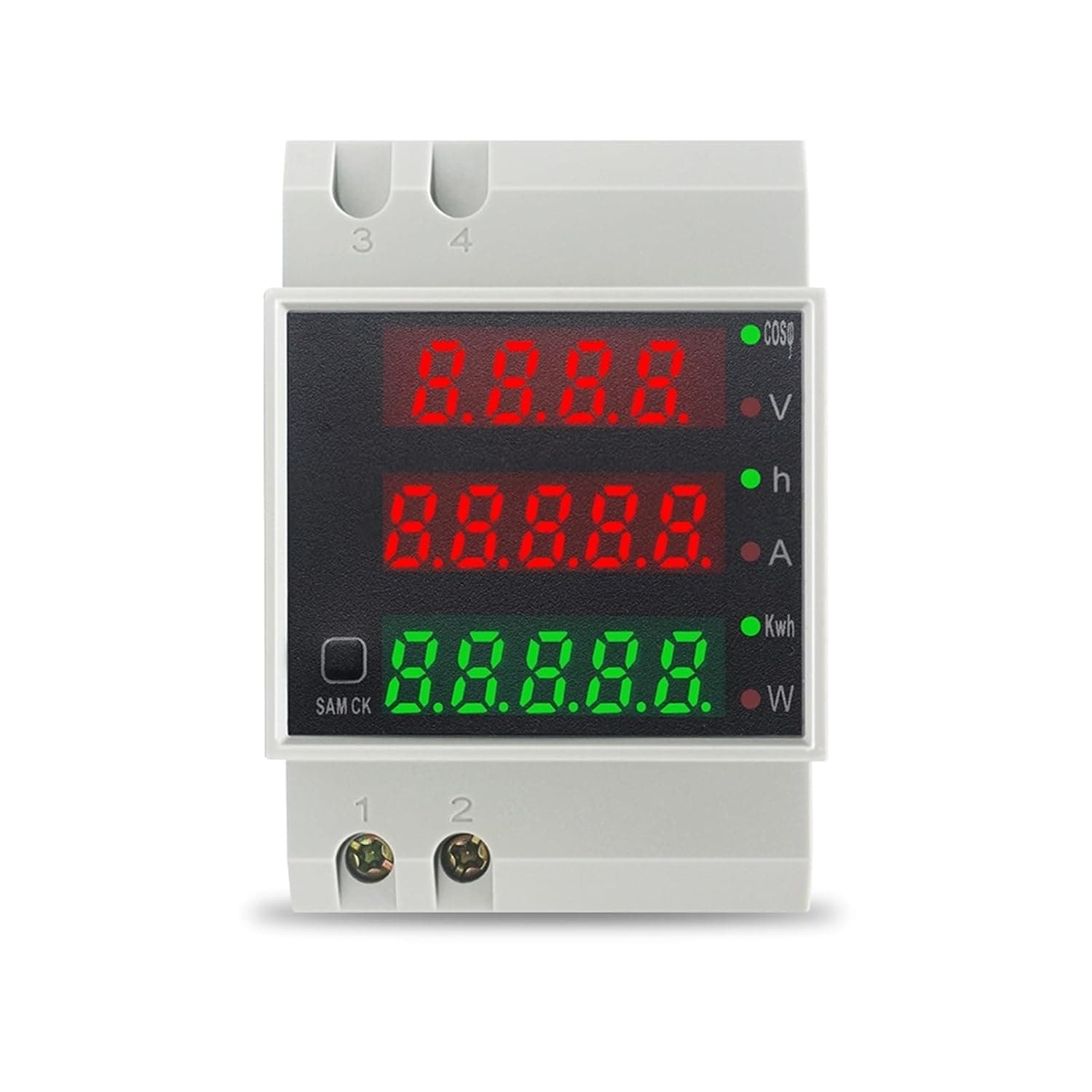

1pc AC 80-300V 0-100A Din Rail LED Voltmeter Ammeter Active Power Factor Energy Meter Voltage Volt Current Multi-Function(AC 250-450V LED)

Ammeters AC 80-300V,250-450V 0-100A Din Rail LED Voltmeter Ammeter Active Power Factor Energy meter Voltage Volt Current Multi-function AC 80-300V 100A & AC 250450V 100A LED display Note when chose AC 250450V it is used in 2 wires of three phase please dont use it in single phase Accuracy 1±2 words AC voltage: AC 80.0 - 300.0 V or AC 250.0 - 450.0 V AC current: AC 0.0 - 100.0A (accuracy: 0.01A) Active power: 0.0 30000 W or 0.0 45000 W Electric energy: 0.000 - 99999 kwh Electric energy of cumulative time: 0.00 - 999.59h Power factor: 1.000 - 0.000 Speed: 2 times per second Size: 54 x 80 x 64 mm Installation: Din-Rail Display mode: V: AC voltage and power factor A: AC current and electric energy of cumulative time W: Active power and electric energy Application Method: 1) Connect the measuring voltage to terminals 1 and 2. 2) Meter to internal current : Place the wire through the hole in any direction. 3) Meter to external current : Place the wire through the hole in the meter, and connect the two wires of the secondary to terminals 3 and 4. 4) When powered on, the meter will display the AC voltage (V), AC current (A) and active power (W) with the correlative LEDs lighting up. 5) When pressing the SAM CK button (right side of meter), the meter will change to display the power factor (cos), electric energy of cumulative time (h), and electric energy (kwh) with the correlative LEDs lighting up. 6) When pressing the SAM CK button again, the meter will display the AC voltage, AC current and active power. 7) When powered off, the meter can save the value of electric energy and electric energy of cumulative time, and go on cumulating data when the meter is powered on again. When the meter is displaying electric energy, you can press down SAM CK button to reset the electric energy and electric energy of cumulative time to zero. The meter can only use to measure 50/60 HZ AC city electricity. It will be destroyed when used to measure square waves, output of inverter, or non-standard sine waves. When chose AC 250-450V, it is used in 2 wires of three phase, please don't use it in single phase. 1 x Din Rail AC meter Successfull cases from ourBuyers AC 40.0-300.0V 100A display AC voltage, AC current, active power, power factor, frequence and electric energy display at the same time. The meter have a colorful, full-view, high definition to display Technical Indicators 1. Accuracy: 1%2 words 2. Range: AC voltage: AC 40.0-300.0V AC Current: AC 0-100.0A, the current resolution is 0.01A. Frequence: 45.0Hz-65.0Hz Power Facter: 0.00- 1.00PF Electric Power: 0-450000W, resolution is 0.1W when 0-9999.9W, the rest is 1W. Electric Energy: 0-9999kwh, resolution is 0.01kwh when 0-999 99kwh, 0.1kwh when 1000-99999 .9kwh, 1kwh when larger than 999.9kwh 3. Speed: 2 times per second 4. Size: 54x80x64 5. Installation: Din-Rail Wire Connection Package Content 1 x din rail voltmeter ammeter ========== Hign-concerned Chemical : None Dimensions : 54x80x64mm Operating Temperature : -10~60Celcius Output Voltage : AC80.0-300.0V Accuracy Class : 0.1 Measuring Energy Range : 0.000-99999kwh Phase : single phase Model Number : Din Rail LED Voltmeter Ammeter Max Operating Current : 80A - 99A Rated Voltage : 240V Power Supply : AC Display Type : Digital Only DIY Supplies : ELECTRICAL Display : Red green Led
